非晶、納米晶技術是現代先進的科技，直接從融熔的鋼水經過快速冷卻成形為非晶帶材，這是冶金史上的革命。作為新型的軟磁材料，由于其獨特的優點，已廣泛于高性能磁芯，電感元件，變壓器。興磁科技 King Magnetics 目前已開發出用于共模電感的系列非晶、納米晶磁芯。
納米晶磁芯具有高的導磁率，頻率特性寬，非常適用于EMC濾波器，共模電感，以抑制共模噪聲。相對于傳統軟磁材料，比如鐵氧體磁芯，納米晶磁芯優勢明顯，高電感量，濾波效果好，體積小，銅線匝數少。
納米晶磁芯的居里溫度高達560℃，遠高于傳統鐵氧體磁芯只有200℃，高居里溫度使得納米晶磁芯具有高的熱穩定性，可以連續工作于120℃。
納米晶磁芯已成為目前共模電感磁芯的優選材質。
納米晶磁芯特性
材質：鐵基納米晶
飽和磁感應強度: 1.25T
導磁率 @ 10KHz: 80000 (典型值)
導磁率 @ 100KHz: 20000 (典型值)
居里溫度(℃): 560
疊片系數: 0.78
飽和磁致伸縮系數(*10^-6): <2
電阻率 (μΩ.cm): 115
帶材厚度: 18~25μm
磁芯型狀：環型磁芯
應用領域
>> EMC/EMI濾波器
>> 高頻開關電源
>> 計算機電源
>> 通信及網絡電源
>> 激光及X光電源
>> 逆變焊機及電鍍電源
>> 太陽能逆變器及風力發電系統
>> 家用電器
>> 不間斷電源(UPS)
>> 變頻器
>> 感應加熱設備
>> 鐵路電源
標準納米晶磁芯
| Part No. | Core dimensions | Case dimensions | Effictive cross section |
Mean path length |
Weight | AL Typical Value** | |||||
| od | id | h | OD | ID | H | AFe | lFe | mFe | 10kHz | 100kHz | |
| mm | mm | mm | mm | mm | mm | cm2 | cm | g | μH | μH | |
| KMN986545 | 9.8 | 6.5 | 4.5 | 11.3 | 5 | 6.1 | 0.06 | 2.6 | 1.1 | 25.5 | 6.4 |
| KMN120805 | 12 | 8 | 5 | 14.4 | 6.5 | 7.0 | 0.08 | 3.1 | 1.6 | 28.0 | 6.8 |
| KMN161006 | 16 | 10 | 6 | 17.9 | 8.1 | 8.1 | 0.14 | 4.1 | 4.16 | 43.0 | 10.1 |
| KMN161008 | 16 | 10 | 8 | 17.8 | 8.4 | 9.9 | 0.19 | 4.1 | 5.5 | 46.1 | 11.5 |
| KMN191510 | 19 | 15 | 10 | 21.2 | 13.5 | 12.3 | 0.16 | 5.3 | 6.0 | 36.1 | 8.8 |
| KMN201208 | 20 | 12 | 8 | 21.7 | 10.8 | 9.9 | 0.25 | 5.0 | 9.1 | 55.2 | 13.6 |
| KMN201210 | 20 | 12 | 10 | 22.6 | 10.5 | 12.5 | 0.31 | 5.0 | 11.4 | 62.4 | 15.6 |
| KMN211308E* | 21.3 | 13.6 | 8 | 22 | 13 | 8.8 | 0.24 | 5.5 | 9.5 | 44.1 | 11.0 |
| KMN252010 | 25 | 20 | 10 | 28 | 17.2 | 13.2 | 0.20 | 7.1 | 10 | 28.4 | 7.3 |
| KMN251610 | 25 | 26 | 10 | 28 | 14.0 | 13.1 | 0.35 | 6.4 | 16.4 | 67.0 | 15.5 |
| KMN261610 | 25.5 | 16 | 10 | 28.3 | 13.9 | 13 | 0.39 | 6.6 | 18.6 | 57.1 | 14.3 |
| KMN302010 | 30 | 20 | 10 | 33.2 | 17.8 | 13.3 | 0.39 | 7.9 | 22 | 59.3 | 14.0 |
| KMN302015 | 30 | 20 | 15 | 33.6 | 17.8 | 17.8 | 0.59 | 7.9 | 33 | 88.0 | 20.0 |
| KMN322010 | 32 | 20 | 10 | 34.4 | 18.1 | 13 | 0.47 | 8.2 | 28 | 57.6 | 14.4 |
| KMN322015 | 32 | 20 | 15 | 35.5 | 18.5 | 19 | 0.64 | 8.3 | 42 | 86.4 | 21.6 |
| KMN322115Y | 32 | 21 | 15 | 34.6 | 17.9 | 18.2 | 0.70 | 8.2 | 38.8 | 77.7 | 19.4 |
| KMN402515 | 40 | 25 | 15 | 44.4 | 22 | 18.8 | 0.88 | 10.2 | 65 | 99.0 | 23.1 |
| KMN402520 | 40 | 25 | 20 | ?45 | ?21.5 | 24.7 | 1.17 | 10.2 | 86.6 | 115.2 | 28.8 |
| KMN403215 | 40 | 32 | 15 | 44.9 | 28.8 | 18.8 | 0.47 | 11.3 | 38 | 48.0 | 11.3 |
| KMN453015 | 45 | 30 | 15 | ?48.3 | 26.4 | 18.2 | 0.88 | 11.8 | 74.9 | 87.6 | 20.0 |
| KMN462725 | 46 | 27 | 25 | ?48.8 | 24.6 | 27.8 | 1.85 | 11.5 | 153.9 | 162.4 | 40.6 |
| KMN503220 | 50 | 32 | 20 | 53.8 | 28.5 | 24 | 1.40 | 12.9 | 131 | 109.6 | 27.4 |
| KMN504020 | 50 | 40 | 20 | 53.6 | 37.1 | 23 | 0.78 | 14.1 | 80 | 45.0 | 13.5 |
| KMN635025 | 63 | 50 | 25 | ?69 | 46 | 29 | 1.27 | 17.7 | 163 | 59.0 | 17.5 |
| KMN644020 | 64 | 40 | 20 | ?68.2 | 37 | 23.5 | 1.87 | 16.3 | 222 | 115.2 | 28.8 |
| KMN644025 | 64 | 40 | 25 | 67.4 | 37 | 29.3 | 2.34 | 16.3 | 277 | 144.0 | 36.0 |
| KMN805020 | 80 | 50 | 20 | 83.8 | 46.6 | 25.0 | 2.34 | 20.4 | 346 | 94.0 | 28.0 |
| KMN805025 | 80 | 50 | 25 | 83.5 | 47.2 | 28.8 | 2.93 | 20.4 | 433 | 144.0 | 36.0 |
| KMN1008020 | 100 | 80 | 20 | 105 | 75 | 25 | 1.56 | 28.3 | 320 | 55.5 | 13.9 |
| KMN1027625 | 102 | 76 | 25 | 107 | 71 | 30 | 2.54 | 27.9 | 514 | 91.1 | 22.8 |
| KMN1309030 | 130 | 90 | 30 | 135 | 85 | 35 | 4.68 | 34.5 | 1172 | 136.1 | 34.0 |
| KMN14010025 | 140 | 100 | 25 | ?145 | 95 | 30 | 3.90 | 37.7 | 1065 | 104 | 26 |
| KMN16013025 | 160 | 130 | 25 | 165 | 125 | 30 | 2.93 | 45.5 | 966 | 64.6 | 16.1 |
| KMN17012025 | 170 | 120 | 25 | 175 | 115 | 30 | 4.88 | 45.5 | 1609 | 107.6 | 26.9 |
| KMN20016030 | 200 | 160 | 30 | 207 | 153 | 37 | 4.50 | 56.5 | 1918 | 83.2 | 20.8 |
以上為標準尺寸，我們可根據客戶的要求、電感量、應用領域，為客戶定制高性能產品，也可以制作成噴涂的磁芯，有利于進一步減少體積。我們協助客戶設計選型，以便優化去選擇磁芯。
具體的磁性能，AL值，以我們的規格書為準，請聯系我們提供新的規格書。
* 環氧涂層.
** AL公差范圍: 下限為-30% ，上限不作限制。也可根據客戶要求制訂電感范圍。
KMN322115Y: 三相外殼 – 適用于三相共模電感
更多環氧涂層磁芯:http://www.regal-raptor.cn/epoxy-coated-nanocrystalline-core.html
]]>
Nanocrystalline rectangular cores for high power high frequency transformers, rectangular shape design for easy winding, suitable for high voltage transformers and pulse transformers.
]]>
Nanocrystalline C core is available now. Upgrade product of amorphous c core, with high saturation flux density, low coercivity, low core loss, very low noise, higher frequency up to 20KHz, suitable for main power transformer, output inductor, boost PFC choke coil. Can replace ferrite core. Dimensions can be custom-made.
Features
Material: Fe-based nanocrystalline
Saturation flux density induction: 1.25T
Curie temperature(℃): 560
Stacking factor: >0.75
Saturation magnetostriction(*10^-6): <2
Resistivity (μΩ.cm): 130
Ribbon thickness: 25μm
Core shape: C type cut core
Applications
>> High frequency transformer (frequency recommend 20-30KHz)
>> Solar inverter filter
>> PFC choke
>> Differential mode choke
>> Output filter
>> Audio equipment
Standard core dimensions
| Part?No. | Core?dimensions | Mean path length |
Effictive cross section |
Weight | |||||
| A | B | C | D | E | F | LFe | Ae | Wt | |
| mm | mm | mm | mm | mm | mm | cm | cm2 | g | |
| KMNC-6.3 | 10 | 11 | 33 | 20 | 31 | 53 | 11.6 | 1.56 | 146 |
| KMNC-8 | 11 | 13 | 30 | 20 | 35 | 52 | 11.7 | 1.72 | 166 |
| KMNC-10 | 11 | 13 | 40 | 20 | 35 | 62 | 13.7 | 1.72 | 192 |
| KMNC-16A | 11 | 13 | 40 | 25 | 35 | 62 | 13.7 | 2.15 | 240 |
| KMNC-16B | 11 | 13 | 50 | 25 | 35 | 72 | 15.7 | 2.15 | 272 |
| KMNC-20 | 11 | 13 | 50 | 30 | 35 | 72 | 15.7 | 2.57 | 326 |
| KMNC-25 | 13 | 15 | 56 | 25 | 41 | 82 | 17.9 | 2.54 | 366 |
| KMNC-32 | 13 | 15 | 56 | 30 | 41 | 82 | 17.9 | 3.04 | 439 |
| KMNC-40 | 13 | 15 | 56 | 35 | 41 | 82 | 17.9 | 3.04 | 426 |
| KMNC-50 | 16 | 20 | 70 | 25 | 52 | 102 | 22.7 | 3.12 | 567 |
| KMNC-63 | 16 | 20 | 70 | 30 | 52 | 102 | 22.7 | 3.74 | 680 |
| KMNC-80 | 16 | 20 | 70 | 40 | 52 | 102 | 22.7 | 4.99 | 884 |
| KMNC-100 | 16 | 20 | 70 | 45 | 52 | 102 | 22.7 | 5.62 | 994 |
| KMNC-125 | 19 | 25 | 83 | 35 | 63 | 121 | 27.2 | 5.19 | 1128 |
| KMNC-160 | 19 | 25 | 83 | 40 | 63 | 121 | 27.2 | 5.93 | 1260 |
| KMNC-200 | 19 | 25 | 83 | 50 | 63 | 121 | 27.2 | 7.41 | 1575 |
| KMNC-250 | 19 | 25 | 90 | 60 | 63 | 128 | 28.6 | 8.89 | 1987 |
| KMNC-320 | 22 | 35 | 85 | 50 | 79 | 129 | 30.6 | 8.58 | 2047 |
| KMNC-400 | 22 | 35 | 85 | 65 | 79 | 129 | 30.6 | 11.15 | 2662 |
| KMNC-500 | 25 | 40 | 85 | 55 | 90 | 135 | 32.5 | 10.73 | 2722 |
| KMNC-630 | 25 | 40 | 85 | 70 | 90 | 135 | 32.5 | 13.65 | 3464 |
| KMNC-800A | 25 | 40 | 85 | 85 | 90 | 135 | 32.5 | 16.58 | 4207 |
| KMNC-800B | 30 | 40 | 95 | 85 | 100 | 155 | 36.1 | 19.89 | 5602 |
| KMNC-1000 | 33 | 40 | 105 | 85 | 106 | 171 | 39.0 | 21.88 | 6665 |
Other specifications are available according to customer’s requirements.
]]>
功率變壓器用納米晶磁芯具有高導磁率，低矯頑力，低鐵損，適用于高頻逆變電源，逆變焊機，電鍍電源，光伏逆變器，激光電源，X光電源，醫療電源，大功率高壓除塵電源等場合。
性能特點
磁芯材質：鐵基納米晶磁芯
飽和磁感應強度: 1.25T
導磁率 @ 10KHz: > 20000
居里溫度(℃): 560
疊片系數: 0.78
飽和磁致伸縮系數(*10^-6): <2
電阻率 (μΩ.cm): 90
帶材厚度: 25μm
磁芯形狀：環型，矩形，C型
高飽和磁感應強度 – 相對傳統鐵氧體磁芯，可以減少變壓器體積
高導磁率 – 提升效率，低激磁功率，減少銅損
低矯頑力和低鐵損 – 變壓器低溫升，節能低碳環保
高居里溫度 – 溫度特性好，工作溫度 -40 – 130℃
應用領域
>> 逆變焊機
>> 電鍍電源
>> 功率放大器
>> 大功率激光電源
>> 通信電源，鐵路、高鐵電源
>> 高頻感應加熱電源
>> 高頻高壓除塵電源
>> 大功率高頻開關電源
納米晶磁芯與傳統鐵氧體磁芯的對比
| 性能 | 納米晶磁芯 | 鐵氧體磁芯 |
| 飽和磁感應強度(T) | 1.25 | 0.5 |
| 剩磁 (T) (20KHz) | <0.3 | 0.2 |
| 鐵損 (20KHz/0.2T) (W/Kg) | <3.4 | 7.5 |
| 鐵損 (20KHz/0.5T) (W/Kg) | <30 | 不能使用 |
| 鐵損 (50KHz/0.3T) (W/Kg) | <40 | 不能使用 |
| 導磁率 (20KHz) | >20,000 | 2000 |
| 矯頑力 (A/m) | <2.0 | 6 |
| 飽和磁致伸縮系數(*10^-6) | <2 | 4 |
| 電阻率 (μΩ.cm) | 90 | 10^6 |
| 居里溫度(℃) | 560 | <200 |
| 疊片系數 | >0.75 | n/a |
變壓器用納米晶磁芯尺寸和參考功率
| Part?No. | Core?dimensions | Case?dimensions | Effictive cross section |
Mean path length |
Weight | Power @ 20KHz |
外殼* | ||||
| od | id | h | OD | ID | H | AFe | lFe | mFe | P | ||
| mm | mm | mm | mm | mm | mm | cm2 | cm | g | KW | ||
| KMN503220T | 50 | 32 | 20 | 53.8 | 28.5 | 24 | 1.40 | 12.9 | 131 | 0.5-1 | O |
| KMN644020T | 64 | 40 | 20 | 68.2 | 37 | 23.5 | 1.87 | 16.3 | 222 | 1-3 | O |
| KMN805025T | 80 | 50 | 25 | 83.5 | 47.2 | 28.8 | 2.93 | 20.4 | 433 | 3-5 | O |
| KMN805025T-2 | 80 | 50 | 25 | 83.5 | 47.2 | 28.8 | 2.93 | 20.4 | 433 | 3-5 | Ω |
| KMN1006020T | 100 | 60 | 20 | 106 | 55 | 25 | 3.12 | 25.1 | 568 | 5-7 | O |
| KMN1006020T-2 | 100 | 60 | 20 | 106 | 55 | 25 | 3.12 | 25.1 | 568 | 5-7 | Ω |
| KMN1207020T | 120 | 70 | 20 | 125 | 65 | 25 | 3.90 | 29.8 | 843 | 7-10 | O |
| KMN1207020T-2 | 120 | 70 | 20 | 125 | 65 | 25 | 3.90 | 29.8 | 843 | 7-10 | Π |
| KMN1207030T | 120 | 70 | 30 | 125 | 65 | 36 | 5.85 | 2.98 | 1265 | 10-15 | O |
| KMN1207030T-2 | 120 | 70 | 30 | 125 | 65 | 36 | 5.85 | 2.98 | 1265 | 10-15 | Π |
| KMN1308040T | 130 | 80 | 40 | 136 | 75 | 46 | 7.80 | 33.0 | 1864 | 15-20 | O |
| KMN1308040T-4 | 130 | 80 | 40 | 136 | 75 | 46 | 7.80 | 33.0 | 1864 | 15-20 | H |
| KMN1308050T | 130 | 80 | 50 | 136 | 75 | 56 | 9.75 | 33.0 | 2331 | 20-25 | O |
| KMN1308050T-4 | 130 | 80 | 50 | 136 | 75 | 56 | 9.75 | 33.0 | 2331 | 20-25 | H |
20KHz功率僅供參考，實際變壓器輸出功率以實際設計設計為準.
其它規格型號可以定制.
* ?外殼類型:
O型 – 環型納米晶磁芯;
Ω 型- 帶兩腳的納米晶磁芯.
Π 型- 帶兩腳的納米晶磁芯.
H型 – 帶四腳的納米晶磁芯.
EMC共模電感用納米晶磁芯:?http://www.regal-raptor.cn/nanocrystalline-core.html
]]>
納米晶磁片具有高的導磁性能。主要用于手機無線充電接收端，屏蔽電磁對手機的干擾，減少能量的損失，提高充電效率。也可以用于其它無線充電領域，比如汽車無線充電器。納米晶磁片厚度可以達到0.1mm，也可以增加厚度以獲得進一步的性能，可以根據客戶需求訂做各種尺寸及形狀。
主要應用領域：
>> 手機無線充電器
>> 通信設備
>> 磁屏蔽
>> 汽車無線充電器
納米晶材料特性
材質：鐵基納米晶
飽和磁感應強度: 1.25T
導磁率 @ 10KHz: > 50000
導磁率 @ 100KHz: >10500
居里溫度(℃): 560
疊片系數: 0.78
飽和磁致伸縮系數(*10^-6): <2
電阻率 (μΩ.cm): 115
帶材厚度: 25μm
磁芯型狀：橢圓型、矩形磁芯
非晶C型磁芯具有高磁感應強度Bs，低鐵損，方便安裝，易于繞線。適用于音頻變壓器，光伏逆變器濾波電感，中頻變壓器，大功率輸出濾波器，變頻空調PFC電感等場合。
性能特點
磁芯材質：鐵基納米晶
飽和磁感應強度: 1.56T
居里溫度(℃): 410
疊片系數: >0.8
飽和磁致伸縮系數(*10^-6): <30
電阻率(μΩ.cm): 130
帶材厚度: 25μm
磁芯型狀: C core
應用領域
>> 光伏逆變器濾波電感
>> 功率因數校正器PFC電感
>> 音頻變壓器
>> 中頻變壓器
>> 差模電感
>> 大功率開關電源輸出濾波電感
標準磁芯規格表
| Part?No. | Core?dimensions | Mean path length |
Effictive cross section |
Weight | |||||
| A | B | C | D | E | F | lFe | AFe | mFe | |
| mm | mm | mm | mm | mm | mm | cm | cm2 | g | |
| KMAC-20 | 11 | 13 | 50 | 30 | 35 | 72 | 15.7 | 2.94 | 331 |
| KMAC-32 | 13 | 15 | 56 | 30 | 41 | 82 | 17.9 | 3.47 | 447 |
| KMAC-40 | 13 | 15 | 56 | 35 | 41 | 82 | 17.9 | 4.05 | 522 |
| KMAC-50 | 16 | 20 | 70 | 25 | 52 | 102 | 22.7 | 3.56 | 580 |
| KMAC-63 | 16 | 20 | 70 | 30 | 52 | 102 | 22.7 | 4.27 | 696 |
| KMAC-80 | 16 | 20 | 70 | 40 | 52 | 102 | 22.7 | 5.70 | 928 |
| KMAC-100 | 16 | 20 | 70 | 45 | 52 | 102 | 22.7 | 6.41 | 1043 |
| KMAC-125 | 19 | 25 | 83 | 35 | 63 | 121 | 27.2 | 5.92 | 1157 |
| KMAC-160 | 19 | 25 | 83 | 40 | 63 | 121 | 27.2 | 6.76 | 1322 |
| KMAC-200 | 19 | 25 | 83 | 50 | 63 | 121 | 27.2 | 8.46 | 1653 |
| KMAC-250 | 19 | 25 | 90 | 60 | 63 | 128 | 28.6 | 10.15 | 2085 |
| KMAC-320 | 22 | 35 | 85 | 50 | 79 | 129 | 30.6 | 9.79 | 2148 |
| KMAC-400 | 22 | 35 | 85 | 65 | 79 | 129 | 30.6 | 12.73 | 2793 |
| KMAC-500 | 25 | 40 | 85 | 55 | 90 | 135 | 32.5 | 12.24 | 2856 |
| KMAC-630 | 25 | 40 | 85 | 70 | 90 | 135 | 32.5 | 15.58 | 3635 |
| KMAC-800A | 25 | 40 | 85 | 85 | 90 | 135 | 32.5 | 18.91 | 4414 |
| KMAC-800B | 30 | 40 | 95 | 85 | 100 | 155 | 36.1 | 22.70 | 5879 |
| KMAC-1000 | 33 | 40 | 105 | 85 | 106 | 171 | 39.0 | 24.96 | 6994 |
其它規格尺寸可以根據客戶需求定做。
]]>
We design amorphous and nanocrystalline components, chokes, inductors, transformers for customers.
Common mode choke with nanocrystalline core has the best performance compared with traditional ferrite core. And small size, low power consuption, low copper wire.
Output filter inductor made of amorphous C core can withstand large DC current, low core loss, low temperature rise, high inductance and high temperature stability.
High frequency transformer for frequency from 400Hz up to 100KHz can use amorphous and nanocrystalline core, with merits of low core loss, high saturation flux density, high efficiency.
According to clients’ drawings, requirments, we select the best solusion, the optimized core and make the excellent components.

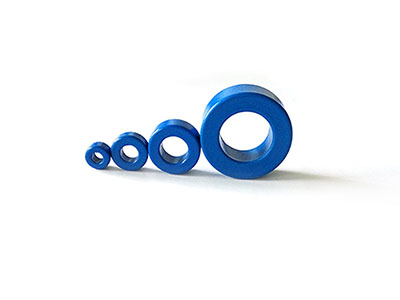

環氧涂層納米晶磁芯相對裝盒的磁芯來說，體積較小，需要較少的銅線，低銅損，減少成本，節能以及節省空間。適用于微型濾波器共模電感，ISDN網絡變壓器，網絡濾波器，EMC濾波器，IGBT/Mosfet驅動變壓器，高清攝像頭信號傳輸變壓器/濾波器。
性能特點
材質：鐵基納米晶
飽和磁感應強度: 1.25T
導磁率 @ 10KHz: > 50000
導磁率 @ 100KHz: >10500
居里溫度(℃): 560
疊片系數: 0.78
飽和磁致伸縮系數(*10^-6): <2
電阻率 (μΩ.cm): 115
帶材厚度: 25μm
磁芯型狀：環型磁芯
應用領域
> 尖峰抑制器 (e.g. Mosfet)
> IGBT 驅動變壓器
> 電流互感器
> 高頻變壓器
> ISDN 網絡變壓器
> EMI/EMC 濾波器共模電感
> HD高清攝像頭傳輸變壓器、濾波器
優點:
>體積小 – 減小器件體積
– 減少銅線的使用量
– 降低成本
> 尺寸可以方便定制 — 可以按照客戶設計尺寸定做，減少模具成本
> 高絕緣強度 – 適合1000V 耐壓要求
> 高導磁率 — 比普通的鐵氧體高出3-5倍
標準磁芯規格表
| Part?No. | Core?dimensions | Case?dimensions | Effictive cross section |
Mean path length |
AL Minimum Value |
||||
| od | id | h | OD | ID | H | AFe | lFe | 10kHz, 0.25V | |
| mm | mm | mm | mm | mm | mm | cm2 | cm | μH | |
| KMN040203E | 4 | 2.2 | 3.2 | 4.5 | 1.7 | 3.8 | 0.021 | 0.97 | 10.0 |
| KMN060303E | 6 | 3 | 3.2 | 7.0 | 2.0 | 4.2 | 0.037 | 1.41 | 16.6 |
| KMN060403E | 6 | 4 | 3.2 | 7.0 | 3.0 | 4.2 | 0.025 | 1.57 | 10.0 |
| KMN090503E | 9 | 5 | 3.2 | 10.0 | 4.0 | 4.2 | 0.05 | 2.2 | 15.0 |
| KMN120910E | 11.8 | 8.7 | 10 | 12.8 | 7.7 | 11 | 0.121 | 3.22 | 25.0 |
| KMN140905E | 14 | 9 | 4.5 | 15 | 8 | 5.5 | 0.088 | 3.61 | 16.0 |
| KMN211308E | 21.3 | 13.6 | 8 | 22.3 | 12.6 | 9 | 0.24 | 5.48 | 33.0 |
其它尺寸可以根椐客戶要求定制，協助客戶開發。
裝殼的納米晶磁芯:?http://www.regal-raptor.cn/nanocrystalline-core.html
]]>
King Magnetics 珠海興磁科技開發的橢圓型的納米晶磁芯主要應用于電動汽車動力控制、變頻器，方便直接穿過母線。安裝在變頻器與電機之間，濾除高頻噪聲，以保護變頻器及電機軸承，在新能源電動汽車動力總成，充電站中得到廣泛的應用，讓汽車通過EMC測試。電動汽車納米晶橢圓形磁芯可以用于直流側和交流側。
非晶、納米晶磁芯作為新型磁性材料，能廣泛適用于新能源電動汽車，太陽能發電，風力發電，大型開發電源， 激光電源，航空器。主要作用為變壓器、共模噪聲抑制器，濾波電感，電流互感器。
相比于傳統鐵氧體，非晶、納米晶磁芯具有較高的導磁率，和飽和磁感應強度。濾波效果提升，過電流能力也得到增強。能適應車載的惡劣環境。
這種OVAL橢圓型狀的非晶納米晶磁芯為定制磁芯，按照客戶的圖紙尺寸要求定制。我們目前與國內外多家新能源電動汽車及控制器廠家共同開發各種性能的橢圓形非晶、納米晶EMC濾波磁芯，磁芯性能良好，讓新能源汽車控制器通過EMC測試。歡迎來圖來樣定制。
目前我們的磁芯在客戶使用過程中效果獲得正面反饋，性能與國外同類產品接近，性價比高。產品尺寸靈活，可以根據客戶的外殼進行定制磁芯，方便廠家進行設計。
納米晶磁芯特性
材質：鐵基納米晶
飽和磁感應強度: 1.25T
導磁率 @ 10KHz: > 50000
導磁率 @ 100KHz: >10500
居里溫度(℃): 560
疊片系數: 0.78
飽和磁致伸縮系數(*10^-6): <2
電阻率 (μΩ.cm): 115
帶材厚度: 25μm
磁芯型狀：橢圓型、矩形磁芯
應用領域
>> 新能源汽車動力總成控制器
>> 充電樁
>> 變頻器
>> 風力發電
]]>
We custom-make nanocrystalline block cores. We can make the blocks according to your drawings, nanocrystalline block is made of 25 micro meter thickness nanocrystalline ribbon, and nanocrystalline blocks feature low core loss, high permeability, suitable for high frequency transformers, inductors, sensors, wind-power generators.
Features
Material: Fe-based Nanocrystalline core
Saturation flux density induction: 1.25T
Permeability @ 10KHz: > 50000 (Tested by toroidal core)
Curie temperature(℃): 560
Stacking factor: 0.78
Saturation magnetostriction(*10^-6): <2
Resistivity (μΩ.cm): 115
Ribbon thickness: 25μm
Applications
>> Inducted heating equipment
>> Transformer
>> Inductors
>> Sensors
>> Wind-power generators
]]>
